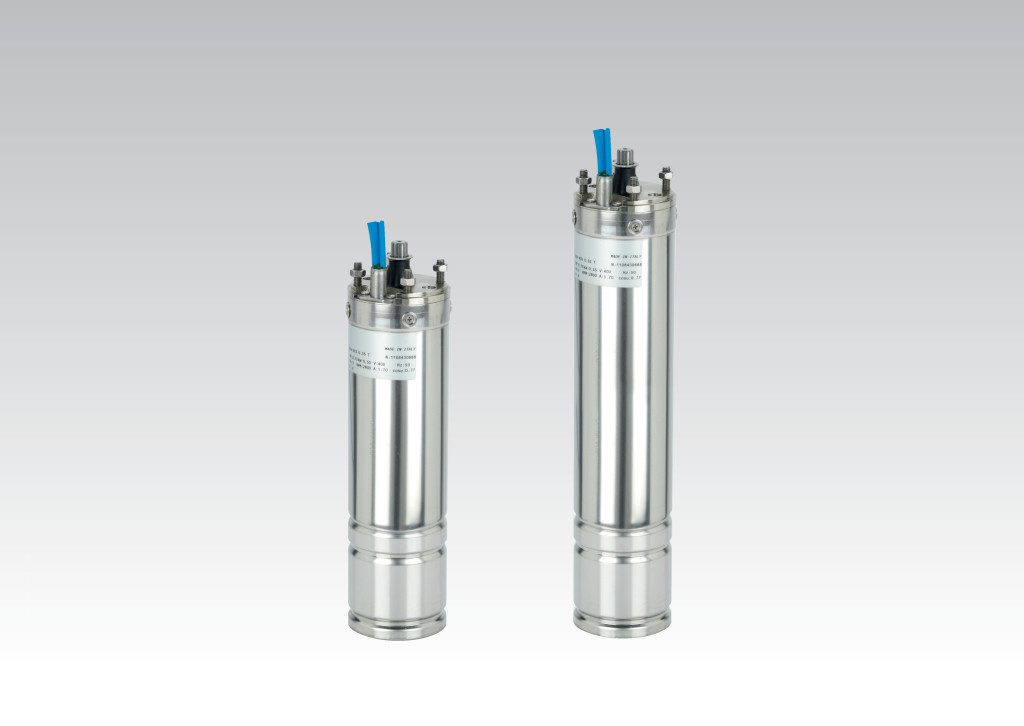

4” rewindable submersible motors filled with food grade dielectric fluid (USA FDA, European Pharmacopeia approved).
Motor housing and lower support, made in s.s. AISI 304, external shaft in s.s. AISI 316.
Upper bracket in s.s. AISI 304 (Brass on request), amply sized rubber equalization diaphragm.
Triple seal system on rotor shaft: bi-directional mechanical seal+radial seal+sand-guard
Single phase motors: PSC type (Permanent Split Capacitor)
Rotation: Single phase motors, clockwise facing shaft end, three phase, clockwise or counter clockwise without distinction.
All motors are 100% tested.
2-pole induction motor, 50 Hz (n ≈ 2900 rpm).
Sized for connection to the pumps according to NEMA Standards.
Standard voltages: – single-phase 230 V.
– three-phase 230 V; 400 V.
Voltage tolerance : +6% / -10%.
Insulation class F. Protection IP 68.
Motor suitable operation with frequency converter.
